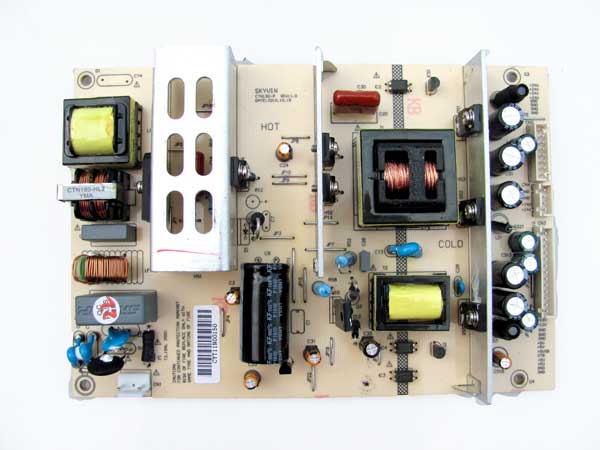

Sursa alimentare LCD CTN130

    Informatii produs

    Model Number: CTN130

    Output Power: 101 - 200W

    Output Type: Dual

    Size: 190*130*28mm

    Input Voltage: 100-240V

    Output Voltage: 5V/12V/24V

    Type: DC/AC Inverters

    Output Frequency: 45~55KHz

    Output Current: 2.5~7.5mA


    Specifications


    LCD power Inverter(CTN130)

    1.Harmonic current:Meet EN60065-2002/IEC61000-3-2 CLASS D

    2.Output Power:130W

    3.Screen size:24~32"


    LCD power Inverter(CTN130) is designed for A/D board and inverter.It's can be adapted to universal AC sources.

    Efficiency(full load): 80% min at100V~; 84%min at 220V~

    Standby power loss: ≤1W

    Temperature:


    Storage: -20°c~+80°c


    Operation: 0°c~+45°c

    Humidity:


    Storage: 5%~95%RH,non-cindensing


    Operating: 10%~90%RH,non-cindensing

    Specification:


    Apply for LCD:24"~32"

    Vibration: 10-55Hz, 19.6/s2(2G),3 minutes period, 60minutes each along X, Y and Z axis.

    Cooling Method: Ventilation cooling

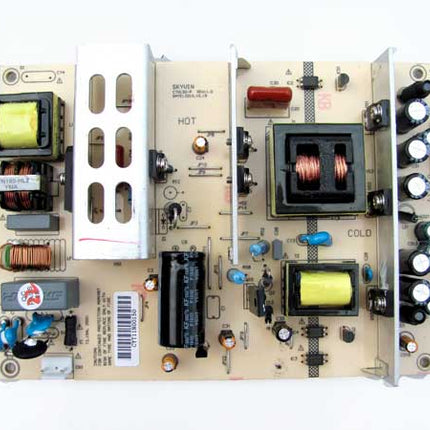

    Sursa alimentare LCD CTN130

      Product form

      116,13 lei

        • Comanda minima recomandata 50lei
        • Livrare rapida in toata Romania
        • 14 zile drept de retur de la primirea produsului
        • Peste 80.000 clienti multumiti

        • Plati securizate. Poți plăti online, cu OP sau la livrare.
