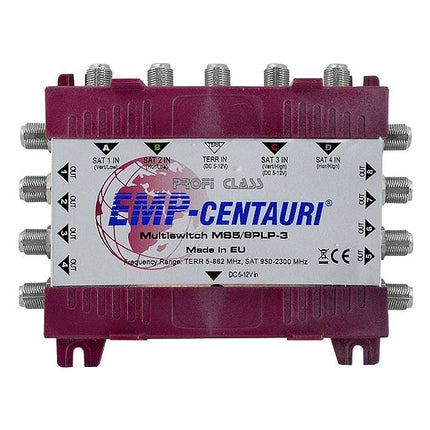

Multiswitch 5/8 EMP-Ccentauri

    Informatii produs

    Profi Class is a product line of the Czech manufacturer EMP-Centauri, produced in Europe and designed to meet the highest customer requirements. These products have an extended temperature range and adjustable attenuation on each input.


    ADVANTAGES OF THE PROFI CLASS






    • Extended temperature range

    • All multiswitches offer input attenuators, selectable active / passive processing

    • Support for Quattro LNBs

    • 12V ON / OFF power switch for terrestrial antenna preamplifier

    • Compatible with DiSEqC 2.0 and below


    A MULTITUDE OF CONNECTORS

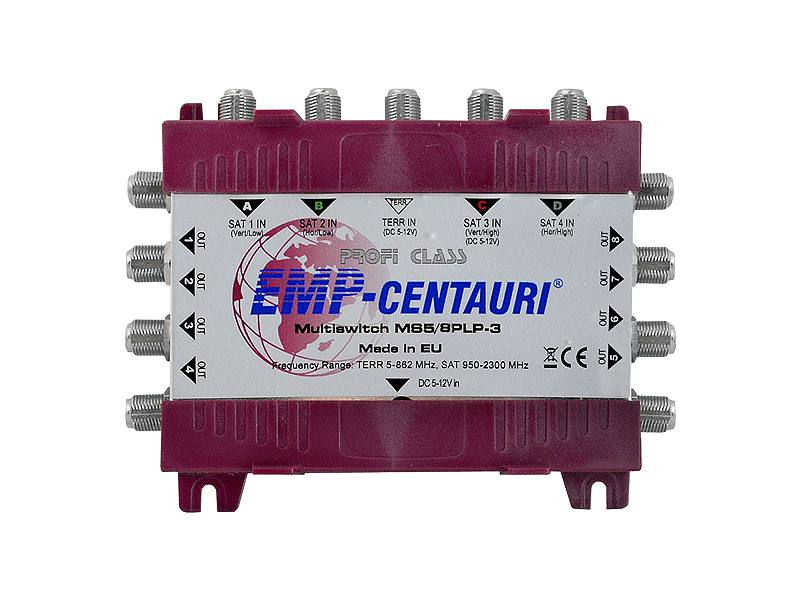

    The multiswitch is very small and compact, it is used to sum terrestrial TV signals and one satellite. It has four SAT inputs from the Quattro LNB, one signal input from the DVB-T antenna and eight summed signal outputs. The summed signal is terminated with RTV-SAT subscriber sockets.


    EXTRA POWER SOCKETS


    The device passes direct current from the receivers to the SAT inputs, so it does not require an additional power supply. Equipped with an additional DC 9-20V power socket, which allows you to connect the power supply, e.g. to power the antenna preamplifier. External power is not needed for passive antennas.































































    LNB input frequency range 950 - 2300 MHz
    Terr frequency range contribution 5 - 862 MHz
    Output frequency range 5 - 2300 MHz
    Control 13/18 V + 0/22 kHz
    Attenuation Sat 3 dB, average
    Suppression Terr. 16 dB, average
    Input isolation 20 dB (min)
    Input level Sat / Terr. 90/100 dBuV (average)
    Maximum output level Sat. 87 dBuV (average)
    Maximum output level Terr. 84 dBuV (average)
    Power consumption 55 mA (18 V)
    Dimensions 135 x 104 x 41 mm
    Temperature range -30 ° C ~ 70 ° C

    Multiswitch 5/8 EMP-Ccentauri

      Product form

      Produs in stoc

      312,71 lei

        • Comanda minima recomandata 50lei
        • Livrare rapida in toata Romania
        • 14 zile drept de retur de la primirea produsului
        • Peste 80.000 clienti multumiti

        • Plati securizate. Poți plăti online, cu OP sau la livrare.

          stripe
          Informatii livrare

        Livrare în orice localitate din România prin curier Sameday sau Fan Courier (36–72 ore).

        Costul livrării este de 22 lei pentru colete cu greutatea fizică sau volumetrică de până la 8 kg. Pentru coletele care depășesc 8 kg, costul livrării se recalculează.
        Pentru comenzile ce depasesc 1.000 lei, transportul este gratuit.

        Retur 14 zile

        Beneficiezi de 14 zile drept de retur de la primirea produselor.

        Pentru orice informații, ne poți contacta telefonic la +40316302123

        Informatii produs

        Profi Class is a product line of the Czech manufacturer EMP-Centauri, produced in Europe and designed to meet the highest customer requirements. These products have an extended temperature range and adjustable attenuation on each input.


        ADVANTAGES OF THE PROFI CLASS






        • Extended temperature range

        • All multiswitches offer input attenuators, selectable active / passive processing

        • Support for Quattro LNBs

        • 12V ON / OFF power switch for terrestrial antenna preamplifier

        • Compatible with DiSEqC 2.0 and below


        A MULTITUDE OF CONNECTORS


        The multiswitch is very small and compact, it is used to sum terrestrial TV signals and one satellite. It has four SAT inputs from the Quattro LNB, one signal input from the DVB-T antenna and eight summed signal outputs. The summed signal is terminated with RTV-SAT subscriber sockets.


        EXTRA POWER SOCKETS


        The device passes direct current from the receivers to the SAT inputs, so it does not require an additional power supply. Equipped with an additional DC 9-20V power socket, which allows you to connect the power supply, e.g. to power the antenna preamplifier. External power is not needed for passive antennas.































































        LNB input frequency range 950 - 2300 MHz
        Terr frequency range contribution 5 - 862 MHz
        Output frequency range 5 - 2300 MHz
        Control 13/18 V + 0/22 kHz
        Attenuation Sat 3 dB, average
        Suppression Terr. 16 dB, average
        Input isolation 20 dB (min)
        Input level Sat / Terr. 90/100 dBuV (average)
        Maximum output level Sat. 87 dBuV (average)
        Maximum output level Terr. 84 dBuV (average)
        Power consumption 55 mA (18 V)
        Dimensions 135 x 104 x 41 mm
        Temperature range -30 ° C ~ 70 ° C
