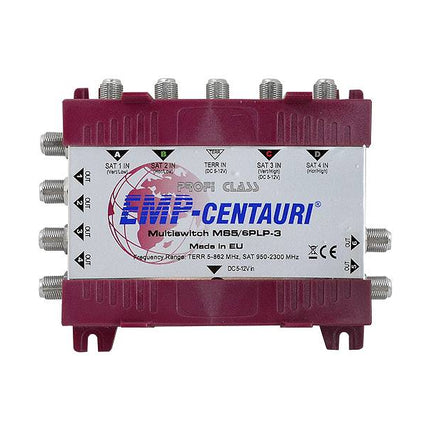

Multiswitch 5/6 EMP-Centauri

    Informatii produs

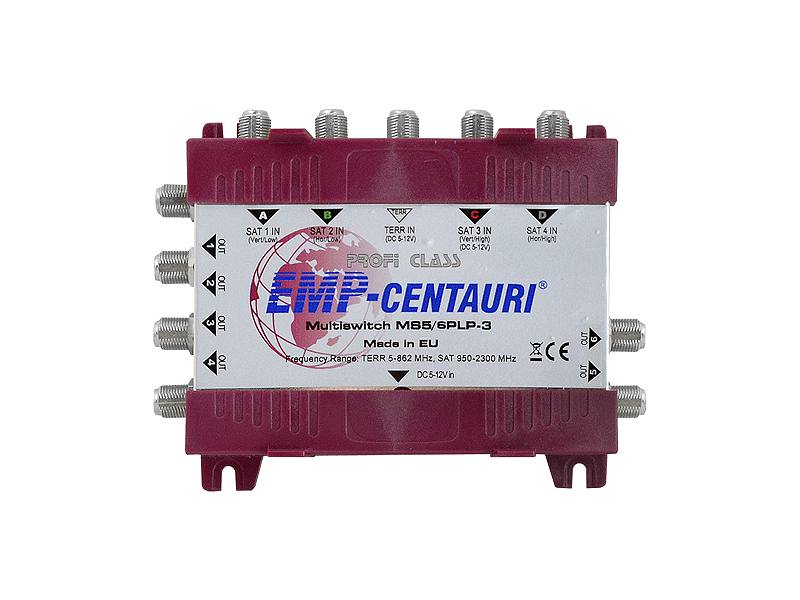

    MULTISWITCH 5/6 EMP-CENTAURI / SPACETRONIK PLP-3.
    PROFI CLASS is a line of products from the Czech manufacturer EMP-centauri, equipment manufactured in Europe, designed to meet the highest customer requirements. These products have an extended temperature range, and adjustable attenuation on each of the inputs.

    Advantages of the PROFI CLASS:
    - Extended temperature range
    - All multiswitches offer input attenuators, selectable active / passive processing
    - Support for Quttro and Quad LNBs
    - Power switch 12V ON / OFF for terrestrial antenna preamplifier
    - Compatible with DiSEqC 2.0 and below

    A compact, very small multiswitch, which is used to sum terrestrial TV signals and one satellite. It has four satellite inputs. with LNB Quattro, one signal input from the dvb-t antenna, and six summed outputs. with Quattro LNB. Equipped with an additional DC 9-20V power socket that allows you to connect the power supply, e.g. to power the antenna preamplifier. External power supply is not needed in the case of passive antennas.































































    LNB input frequency range 950 - 2300 MHz
    Terr. Frequency range contribution 5 - 862 MHz
    Output frequency range 5 - 2300 MHz
    Control 13/18 V + 0/22 kHz
    Attenuation Sat 3 dB, average
    Suppression Terr. Average 15 dB
    Input isolation 20 dB min
    Input level Sat / Terr. 90/105 dBuV average
    Maximum output level Sat. 87 dBuV average
    Maximum output level Terr. Average 90 dBuV
    Power consumption 55 mA (18V)
    Dimensions 13.5 x 10.4 x 4.1 cm
    Temperature range -30 .... 70 degrees C

    Multiswitch 5/6 EMP-Centauri

      Product form

      Produs in stoc

      286,00 lei

        • Comanda minima recomandata 50lei
        • Livrare rapida in toata Romania
        • 14 zile drept de retur de la primirea produsului
        • Peste 80.000 clienti multumiti

        • Plati securizate. Poți plăti online, cu OP sau la livrare.

          stripe
          Informatii livrare

        Livrare în orice localitate din România prin curier Sameday sau Fan Courier (36–72 ore).

        Costul livrării este de 22 lei pentru colete cu greutatea fizică sau volumetrică de până la 8 kg. Pentru coletele care depășesc 8 kg, costul livrării se recalculează.
        Pentru comenzile ce depasesc 1.000 lei, transportul este gratuit.

        Retur 14 zile

        Beneficiezi de 14 zile drept de retur de la primirea produselor.

        Pentru orice informații, ne poți contacta telefonic la +40316302123

        Informatii produs

        MULTISWITCH 5/6 EMP-CENTAURI / SPACETRONIK PLP-3.
        PROFI CLASS is a line of products from the Czech manufacturer EMP-centauri, equipment manufactured in Europe, designed to meet the highest customer requirements. These products have an extended temperature range, and adjustable attenuation on each of the inputs.

        Advantages of the PROFI CLASS:
        - Extended temperature range
        - All multiswitches offer input attenuators, selectable active / passive processing
        - Support for Quttro and Quad LNBs
        - Power switch 12V ON / OFF for terrestrial antenna preamplifier
        - Compatible with DiSEqC 2.0 and below

        A compact, very small multiswitch, which is used to sum terrestrial TV signals and one satellite. It has four satellite inputs. with LNB Quattro, one signal input from the dvb-t antenna, and six summed outputs. with Quattro LNB. Equipped with an additional DC 9-20V power socket that allows you to connect the power supply, e.g. to power the antenna preamplifier. External power supply is not needed in the case of passive antennas.































































        LNB input frequency range 950 - 2300 MHz
        Terr. Frequency range contribution 5 - 862 MHz
        Output frequency range 5 - 2300 MHz
        Control 13/18 V + 0/22 kHz
        Attenuation Sat 3 dB, average
        Suppression Terr. Average 15 dB
        Input isolation 20 dB min
        Input level Sat / Terr. 90/105 dBuV average
        Maximum output level Sat. 87 dBuV average
        Maximum output level Terr. Average 90 dBuV
        Power consumption 55 mA (18V)
        Dimensions 13.5 x 10.4 x 4.1 cm
        Temperature range -30 .... 70 degrees C
