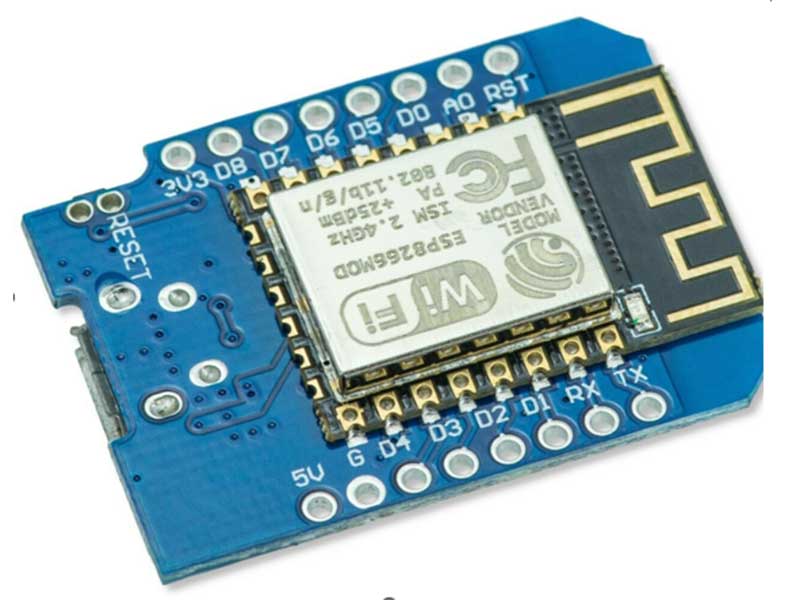

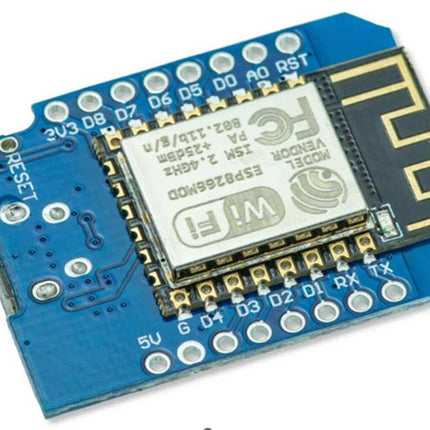

Modul Wifi IoT ESP8266 ESP-12F

    Informatii produs

    Warnings:

    1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.

    2.It is not 5V tolant,Connect RX or TX on 5V for Arduino will destroy this module.

    3.You must use a logic level converter, or a 3.3V for Arduino
    4.The 3.3V supply on the for Arduino Uno has inadequate current capabilit to power this module.

    5.You must provide a separate,higher 3.3V supply(about 300mA or better)





    ESP-12F



    • Type:ESP-12F

    • Standards Certification: FCC / CE / TELEC

    • Wireless standards: 802.11 b / g / n

    • Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)

    • Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM

    • Operating voltage: 3.0 ~ 3.6V (recommendation 3.3V)

    • Working Current: Average: 80mA

    • Operating temperature: -40 ° ~ 125 °

    • Storage temperature: Nomal temperature


    Modul Wifi IoT ESP8266 ESP-12F

      Product form

      Produs in stoc

      23,57 lei
