Modul DC-DC pozitiv 3,6-36V la negativ -1,5-36V MC34063A

    Informatii produs

    Product Name:

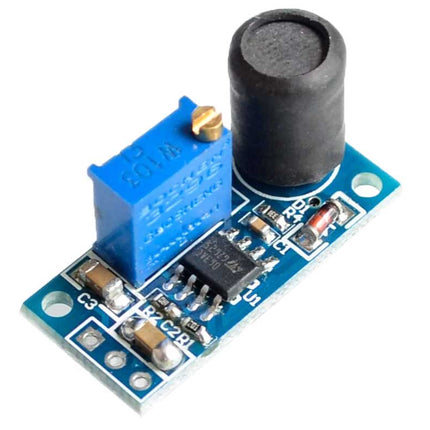

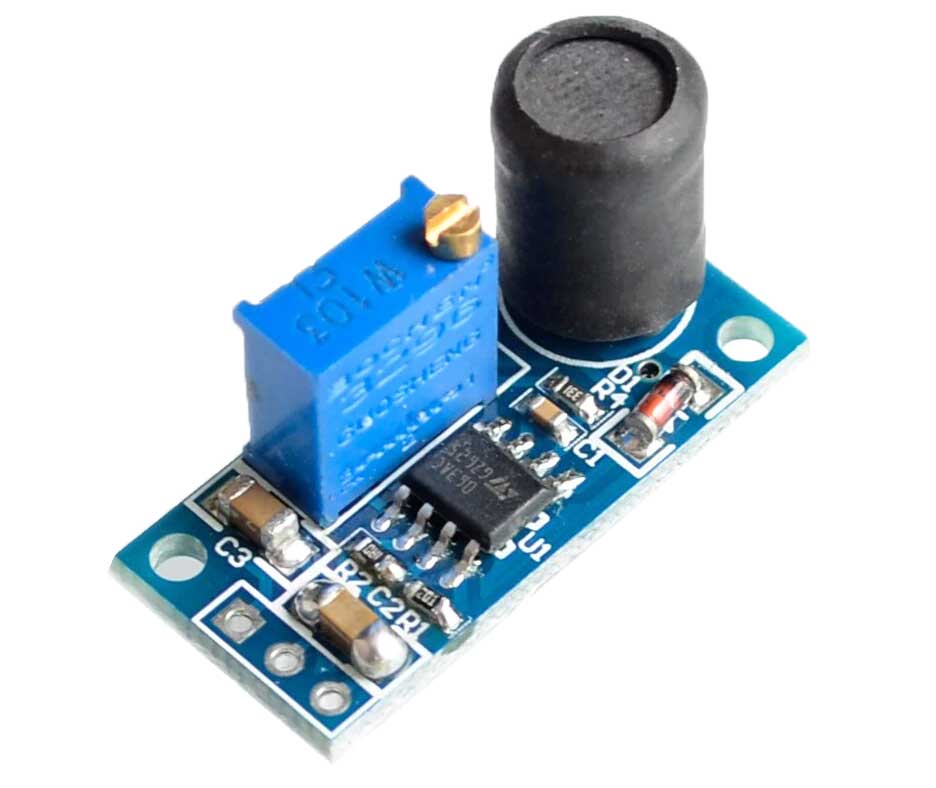

    Positive To Negative Voltage Converter Module DC-DC 3.6V-36V Reverse Voltage Module MC34063A


    Description:


    The reverse voltage module MC34063A_NV is a chip based on MC34063A for providing reverse voltage, negative voltage modules. Capable of converting + 5V voltage to -5V voltage output. The output voltage can be adjusted by adjusting the potentiometer according to the requirements.


    Technical Parameters:


    Input voltage range: 3.6V-36V.


    Output voltage range: negative 1.5V to negative 36V. Output voltage regulation characteristics; load regulation rate of less than 5%.


    Output current. The IC of the module is 1.5A internal switch, but for safety and heat considerations, it is recommended that the load power of this module is less than 0.5W. That is, the output negative 5V, the load within 100MA, the proposed 50MA.


    Other parameters:


    Using single-chip embedded technology.


    Input positive voltage, output negative voltage.


    Easy to operate, you can adjust the output voltage through the potentiometer.


    The module is small, easy to carry and use a variety of occasions

    Modul DC-DC pozitiv 3,6-36V la negativ -1,5-36V MC34063A

      Product form

      Produs in stoc

      7,79 lei

        • Comanda minima recomandata 50lei
        • Livrare rapida in toata Romania
        • 14 zile drept de retur de la primirea produsului
        • Peste 80.000 clienti multumiti

        • Plati securizate. Poți plăti online, cu OP sau la livrare.

          stripe
          Informatii livrare

        Livrare în orice localitate din România prin curier Sameday sau Fan Courier (36–72 ore).

        Costul livrării este de 22 lei pentru colete cu greutatea fizică sau volumetrică de până la 8 kg. Pentru coletele care depășesc 8 kg, costul livrării se recalculează.
        Pentru comenzile ce depasesc 1.000 lei, transportul este gratuit.

        Retur 14 zile

        Beneficiezi de 14 zile drept de retur de la primirea produselor.

        Pentru orice informații, ne poți contacta telefonic la +40316302123

        Informatii produs

        Product Name:


        Positive To Negative Voltage Converter Module DC-DC 3.6V-36V Reverse Voltage Module MC34063A


        Description:


        The reverse voltage module MC34063A_NV is a chip based on MC34063A for providing reverse voltage, negative voltage modules. Capable of converting + 5V voltage to -5V voltage output. The output voltage can be adjusted by adjusting the potentiometer according to the requirements.


        Technical Parameters:


        Input voltage range: 3.6V-36V.


        Output voltage range: negative 1.5V to negative 36V. Output voltage regulation characteristics; load regulation rate of less than 5%.


        Output current. The IC of the module is 1.5A internal switch, but for safety and heat considerations, it is recommended that the load power of this module is less than 0.5W. That is, the output negative 5V, the load within 100MA, the proposed 50MA.


        Other parameters:


        Using single-chip embedded technology.


        Input positive voltage, output negative voltage.


        Easy to operate, you can adjust the output voltage through the potentiometer.


        The module is small, easy to carry and use a variety of occasions
