Accesorii antene satelit

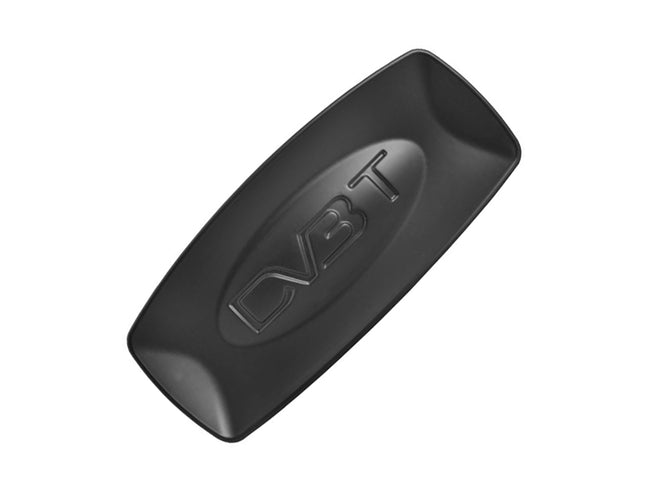

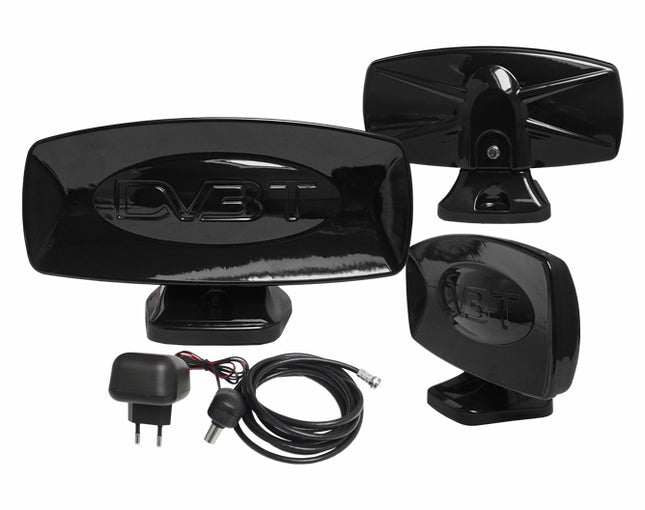

Antenă activă pentru recepţia de semnale DVB-T. Este potrivita pentru toate receptoarele DVB-T cu 5V 30mA Gama de frecvenţe: 174 ~ 230 / 470 ~ 862 MHzGain: 18 dB dB/15Lungime : 340mm, cablu 1,2m

Read more less

Splitter in a zinc diecast housing with satellite DC-power pass, nickel plated.• Insertion 5-40 MHz: 5.0 dB • Loss 40-450 MHz: 4.5 dB (IN-OUT) 470-860 MHz: 4.5 dB (IN-OUT) 950-1750 MHz: 6.0 dB (IN-OUT) 1750-2400 MHz: 6.5 dB • Isolation 5-40 MHz: 15 dB • loss 40-450 MHz: 20 dB(OUT-OUT) 470-860 MHz: 20 dB (OUT-OUT) 950-1750 MHz: 18 dB (OUT-OUT) 1750-2400 MHz: 16 dB • Return loss: 14 dB

Read more less

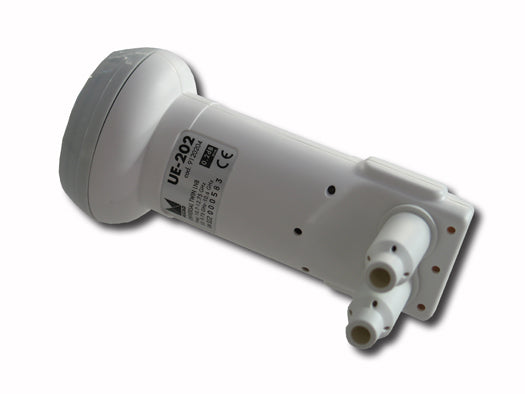

DescriereConvertor LNB cu 2 iesiri.Frecventa: 10.7 - 12.75 GHzDiametru: 40mmZgomot: 0,2 dBProtectie la umiditate

Read more less

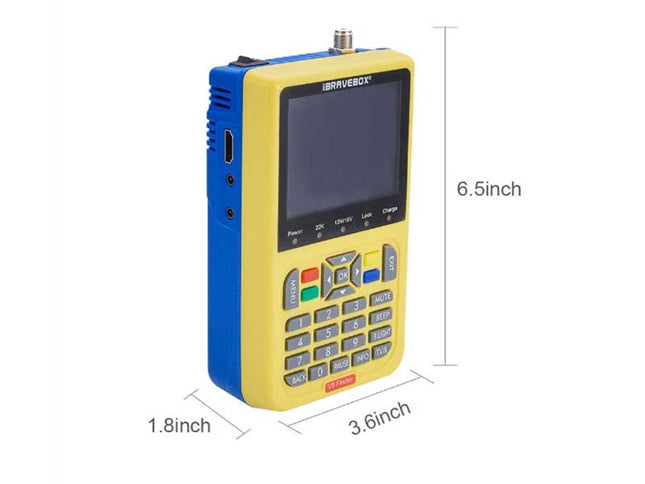

System capabilities: Full HD DVB-S/S2 Complian, Fully DVB compliantVideo Decode: AC-3,MPEG-2 MP@HL;H.264 BP MP&HP@L4.1;AVS profile@L6.1/4.0/2.0PAL/NTSC: Automatic PAL/NTSC conversionChannels Number: 6000 channels TV and Radio programmableFavorites: 8 different favorite groups selectionOSD Language: English\German\French\Portuguese\Spanish\Italian\Russian\Turkish\Polish\Arabic \Farsi\Espanol\DeutschOSD Color: 16-bit OSD with anti-flickeringChannel Search: Channel search in automatic, manual and network searchChannel Edit: Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)Easy Menu: Plug and Play installation, with an easy to use Menu SystemSoftUpgrade: Software upgrade through USBSave Channel: Automatic save for last channelLi-oN Battery: Battery 3000mAPower Supply: DC12V/1500mA (Input 100V ?240V, 50/60Hz) Electric PerformanceSystem resource:Flash Memory: 64Mb Serial FlashDDR3 Memory: 1Gb DDR3 LNB/Tuner input:Connector: F type,maleFrequency range: 950MHZ-2150MHZInput Impedance: 75ΩSignal lever: -65dBm~-25dBmActive Ant Power: 13/18V DC @ 400mA MAX,Overload ProtectionLNB switch control: 22KHzDiSEqC: Ver 1.0/1.1/1.2 Demodulator:Front end: QPSK(S);QPSK,8PSK,16APSK,32APSK(S2)Modulation range: 2Mbps~45MbpsSCPC and MCPC Capable: YesSpectral inversion: Auto conversion Product Size: 95*155*45mmGift Box Size: 240*180*58mmWeight (1 set): 0.5 Kg (N.W.)/0.85Kg (G.W.)Panel display: 3.5 inch LCDDisplay Color: Colour ScreenOutput Interface: LNB IN*1, DV OUT, AV OUT, AV IN, USB,Power supplyHD: HD(up to 1080P) output

Read more less

Gama inferioara - intrarea 10,7 - 11,7 GHzBanda inferioara - iesirea 950 - 2050 MHzOscilator inferior 9,75 GHzGama superioara - intrarea 11,7 - 12,75 GHzBanda superioara - iesirea 1100 - 2150 MHzOscilator superior 10,6 GHzArmare 60 dBFigura de zgomot 0,1 dBVSWR 2.5: 1Temperatura de lucru -40 .... 65 grade C

Read more less

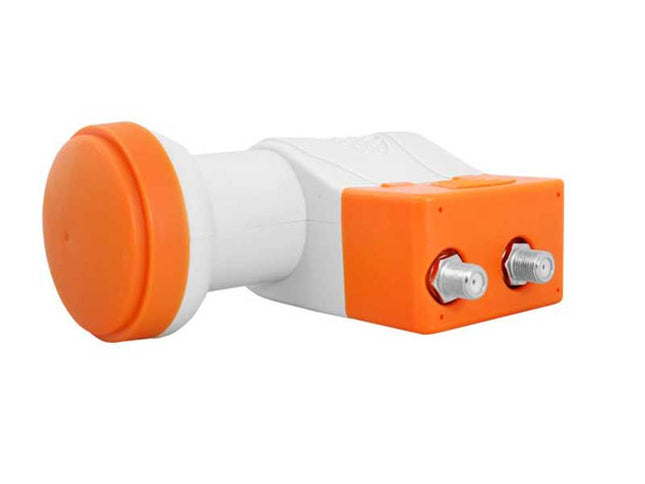

Producator TechniSatModel Phoenix CE UHD Twin LNBNumarul de iesiri 2Tip conector F.Impedanta 75 ohmiArmare 55 dBDiametrul de prindere 40 mmPolarizare verticala a sursei de alimentare 10,5 - 14VPolarizare orizontala a sursei de alimentare 16 - 20VConsumul de energie 110mAGama de frecvente 9,75 GHz - 10,6 GHzFigura de zgomot 0,3 dBUmiditatea aerului 10 - 90%Temperatura ambientala de la -30 la 70 de grade CCarcasa impermeabila daRecep?ie TV 3D da

Read more less

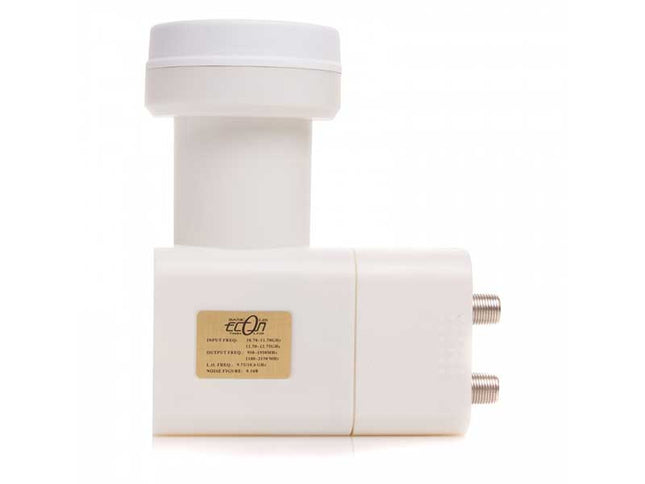

Twin LNB Legacy Outputs: 2Noise Figure: 0.1dBReflector Type: OffsetClamp size: 40mmInput Frequency Range: 10.7GHz - 11.7 GHz (Low Band)Input Frequency Range: 11.7GHz - 12.7 GHz (High Band)Output Frequency Range: 950 MHz - 1950MHz (Low Band)Output Frequency Range: 1100 MHz - 2150 MHz (High Band)L.O. Frequency: 9.75 GHz (Low Band) / 10.6GHz (High Band)L.O. Frequency Phase Noise: -60dBc/Hz @ 1KHz (Max) / -85dBc/Hz @10KHz (Max) / -95dBc @ 100KHz (Max)Conversion Gain: 58-63dB Gain Flatness 26MHz Bandwidth: +/-0.5dB/36MHzPolarity Switching Voltage: Horizontal: 16-18V / Vertical: 12-14.5VHigh Band Switching: 22KHz +/- 4KHzCross Pol. Isolation: <=18dB (Typ.)Port-Port Isolation: <=16dBImage Rejection: 40dB (Min)Output Spurious: <-60dBmPower Consumption: 120mA (Typ.)

Read more less

Compatibilitate HDTV DVB-S2Banda joasa intrare: 10,7-11,7GHzIesire: 950-1950MHzBanda superioara High-Band intrare: 11,7-12,75GHz iesire: 1100-2150 MHzOscilator cu band? joasa 9,75 GHz (+/- 0,7 MHz)Oscilator de banda înalta 10,6 GHz (+/- 0,7 MHz)Factorul de amortizare 0,1 dBArmare 60 dB tipic, 67 dB maxVariatia caracteristicii castigului +/- 0,75 dB / 26 MHz +/- 5,5 dB / 300 MHzControlul polaritatii V 11,5 ~ 14,0VControlul polaritatii 16,0 ~ 20,0 VConsumul de energie 77mA / 110mA maxImpedanta de iesire 75 ohmiTemperatura de lucru -35 ° C ~ 70 ° CDiametrul de prindere 40 mmConector F.Capac conector F daBalanta 60 gCuloare alb

Read more less

Lower band - entrance 10.7 - 11.7 GHzLower band - output 950 - 2050 MHzBottom oscillator 9.75 GHzUpper band - entrance 11.7 - 12.75 GHzUpper band - output 1100 - 2150 MHzUpper oscillator 10.6 GHzReinforcement 60 dBNoise factor 0.1 dBVSWR 2.5: 1Working temperature -40 .... 65 degrees C

Read more less

Aceasta antena a fost proiectata pentru receptia semnalelor TV terestre analogice si digitale.Poate receptiona toate semnalele TV din zona dumneavoastra pe benzile UHF, precum si semnalul radio FM.Este solutia ideala pentru receptionarea semnalelor atat in ​​mediul casnic, cat si pentru televizoare portabile.

Read more less

Splitter in a zinc diecast housing with satellite DC-power pass, nickel plated.• Insertion 5-40 MHz: 10.0 dB • Loss 40-450 MHz: 8.0 dB (IN-OUT) 470-860 MHz: 8.5 dB (IN-OUT) 950-1750 MHz: 10.5 dB (IN-OUT) 1750-2400 MHz: 11.5 dB • Isolation 5-40 MHz: 16 dB • Loss 40-450 MHz: 20 dB (OUT-OUT) 470-860 MHz: 20 dB (OUT-OUT) 950-1750 MHz: 18 dB (OUT-OUT) 1750-2400 MHz: 16 dB • Return loss: 12 dB

Read more less

Material: otel zincatDistanta fata de perete 30cmInaltime: 25cmDiametru teava: 38mmTalpa: 150x120mm

Read more less

Placa receptie satelit SKYSTAR2. Receptie televiziune digitala DVB-S, radio si teletextReceptie servicii de date via satellit dish (Multicast/Unicast, MPE)TelecomandaPlug&PlayPCI cardInput Frequencies: 950 - 2.150 MHzRF-level: -65 to -25 dBmLNB support: 13V/18V, 350mA max.DiSEqC 1.0SCPC si MCPCMade in Germany
