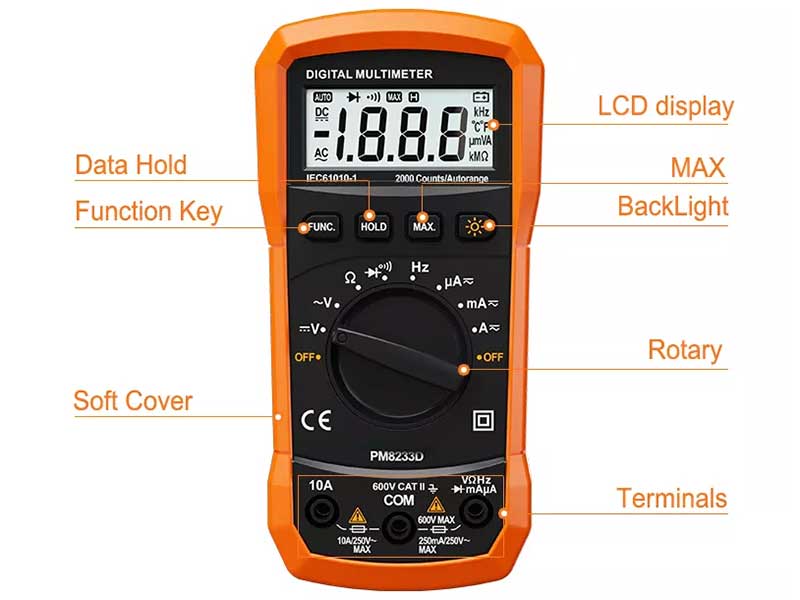

Multimetru PM8233D+

    Informatii produs

    This multimeter is a handheld and battery operated Digital Multi Meter(DMM) with multi-function. This Meter is designed to meet IEC61010-1 & CAT III 600V over voltage category and double insulation. The meter with holster that is giving the main body, though downsized, high resistance against the shock of a drop. This operating instruction covers information on safety and caution.  Please read relevant information carefully and observe all the warnings and note strictly. The DMM as general measurement tool and widely used in the school, laboratory, factory and other social field.


    Features:


    ·        Display:2000 Counts


    ·        Auto range


    ·        Data hold


    ·        Back light


    ·        Diode test


    ·        Continuity


    ·        Maximum Value hold







































































































    Specifications



    Range



    PM8233D



    DC Voltage



    200mV/2V/20V/200V



    ±(0.5%+2)







    600V



    ±(0.8%+2)



    AC Voltage



    2V/20V/200V/600V



    ±(1.0%+3)



    DC Current



    200μA/2mA/20mA/200mA



    ±(1.0%+3)







    10A



    ±(3.0%+3)



    AC Current



    200μA/2mA/20mA/200mA



    ±(1.2%+3)







    10A



    ±(3.0%+5)



    Resistance



    200Ω/2kΩ/20kΩ/200kΩ/2MΩ



    ±(0.8%+2)







    20MΩ



    ±(1.0%+2)



    Frequency



    20kHz



    ±(1.0%+2)



    Features



    Display



    2000 counts



    Auto range



    Yes



    Data hold



    Yes



    Backlight



    Yes



    Diode test



    Yes



    Continuity



    Yes



    Maximum Value hold



    Yes



    General



    Power supply



    DC9V 6F22 battery



    Weight



    Approx. 110g
