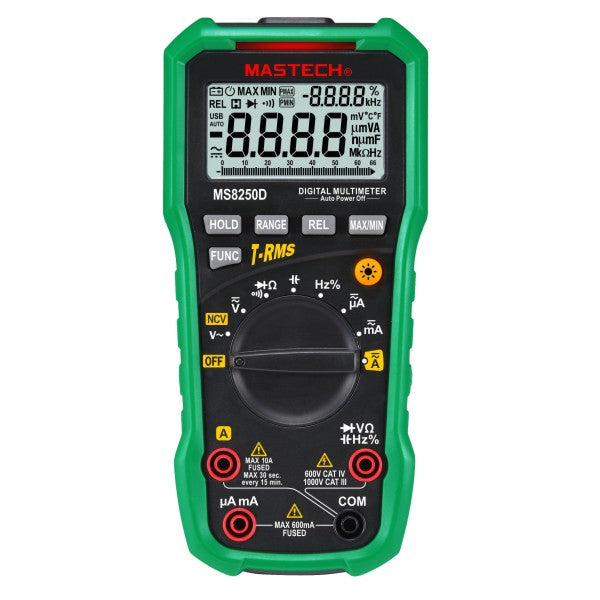

Multimetru autoscalare NCV/USB MS8250D Mastech

    Informatii produs




    DC Voltage 660mV +-(0.8%+3)


                    6.6V/66V/660V/1000V +-(0.5%+5)


    AC Voltage 660mV +-(1.5%+5)


                    6.6V/66V +-(1.2%+5)


                    660V/1000V +-(1.0%+3)


    DC Current 660µA/6600µA/66mA/660mA +-(1.0%+5)


                    10A +-(2.0%+5)


    AC Current 660µA/6600µA/66mA/660mA +-(1.5%+5)


                    10A +-(3.0%+5)


    Resistance 660Ω/6.6/66/660KΩ/6.6MΩ +-(0.8%+5)


                    66MΩ +-(1.5%+5)


    Capacitance 6.6nF +-(4.0%+5)


                            66/660nF/6.6/66/660µF +-(3.0%+3)


                            6.6mF/66mF +-(4.0%+5)


    Frequency 66Hz/660Hz/6.6kHz/66kHz/660kHz/6.6MHz/66MHz +-(1.5%+5)


    Duty Cycle 0.1%~99.9% +-(2%+2)



    • Auto range and manual range.

    • Full range overload protection

    • Max. voltage between terminal and ground:
      CAT IV, 600V DC or AC rms.
      CAT III, 1000V DC or AC rms.

    • Operational altitude: 2000 m max.

    • Display: LCD

    • Displayed maximum value: 6599

    • Polarity Indication: Automatically display " - "

    • Over range indication: "OL " or "-OL"

    • Sampling rate: approx. 0.4s/analog bar graph: approx.0.04s except for current measurement: approx. 1s/bar graph: 0.1s

    • Unit display: functions and unit power

    • Auto power off time: approx.15 min.

    • Power Supply: 9V Battery

    • Low Battery Indication: displays shows '  '

    • Temperature coefficient: less than 0.1 x accuracy/℃

    • Operating temperature: 0℃ to 40℃

    • Storage temperature: -10℃ to 50℃

    • Dimension: 180x86x52mm

    • Weight: about 250g (without battery)

    • Order Ref. Number: MS8250DC15L

    • Display: 6600 counts

    • Auto Ranging

    • Manual Ranging

    • Auto Power Off

    • Relative Measurement

    • True Root Mean Square

    • Non-Contact Voltage Detection

    • Diode: 3.2V

    • Continuity Buzzer: <50Ω

    • MAX/MIN

    • Bar Graph

    • Data hold

    • Low Battery Display

    • Display Backlight

    • USB Interface: Windows OS

    Multimetru autoscalare NCV/USB MS8250D Mastech

      Product form

      291,43 lei

        • Comanda minima recomandata 50lei
        • Livrare rapida in toata Romania
        • 14 zile drept de retur de la primirea produsului
        • Peste 80.000 clienti multumiti

        • Plati securizate. Poți plăti online, cu OP sau la livrare.

          stripe
          Informatii livrare

        Livrare în orice localitate din România prin curier Sameday sau Fan Courier (36–72 ore).

        Costul livrării este de 22 lei pentru colete cu greutatea fizică sau volumetrică de până la 8 kg. Pentru coletele care depășesc 8 kg, costul livrării se recalculează.
        Pentru comenzile ce depasesc 1.000 lei, transportul este gratuit.

        Retur 14 zile

        Beneficiezi de 14 zile drept de retur de la primirea produselor.

        Pentru orice informații, ne poți contacta telefonic la +40316302123

        Informatii produs




        DC Voltage 660mV +-(0.8%+3)


                        6.6V/66V/660V/1000V +-(0.5%+5)


        AC Voltage 660mV +-(1.5%+5)


                        6.6V/66V +-(1.2%+5)


                        660V/1000V +-(1.0%+3)


        DC Current 660µA/6600µA/66mA/660mA +-(1.0%+5)


                        10A +-(2.0%+5)


        AC Current 660µA/6600µA/66mA/660mA +-(1.5%+5)


                        10A +-(3.0%+5)


        Resistance 660Ω/6.6/66/660KΩ/6.6MΩ +-(0.8%+5)


                        66MΩ +-(1.5%+5)


        Capacitance 6.6nF +-(4.0%+5)


                                66/660nF/6.6/66/660µF +-(3.0%+3)


                                6.6mF/66mF +-(4.0%+5)


        Frequency 66Hz/660Hz/6.6kHz/66kHz/660kHz/6.6MHz/66MHz +-(1.5%+5)


        Duty Cycle 0.1%~99.9% +-(2%+2)



        • Auto range and manual range.

        • Full range overload protection

        • Max. voltage between terminal and ground:
          CAT IV, 600V DC or AC rms.
          CAT III, 1000V DC or AC rms.

        • Operational altitude: 2000 m max.

        • Display: LCD

        • Displayed maximum value: 6599

        • Polarity Indication: Automatically display " - "

        • Over range indication: "OL " or "-OL"

        • Sampling rate: approx. 0.4s/analog bar graph: approx.0.04s except for current measurement: approx. 1s/bar graph: 0.1s

        • Unit display: functions and unit power

        • Auto power off time: approx.15 min.

        • Power Supply: 9V Battery

        • Low Battery Indication: displays shows '  '

        • Temperature coefficient: less than 0.1 x accuracy/℃

        • Operating temperature: 0℃ to 40℃

        • Storage temperature: -10℃ to 50℃

        • Dimension: 180x86x52mm

        • Weight: about 250g (without battery)

        • Order Ref. Number: MS8250DC15L

        • Display: 6600 counts

        • Auto Ranging

        • Manual Ranging

        • Auto Power Off

        • Relative Measurement

        • True Root Mean Square

        • Non-Contact Voltage Detection

        • Diode: 3.2V

        • Continuity Buzzer: <50Ω

        • MAX/MIN

        • Bar Graph

        • Data hold

        • Low Battery Display

        • Display Backlight

        • USB Interface: Windows OS
