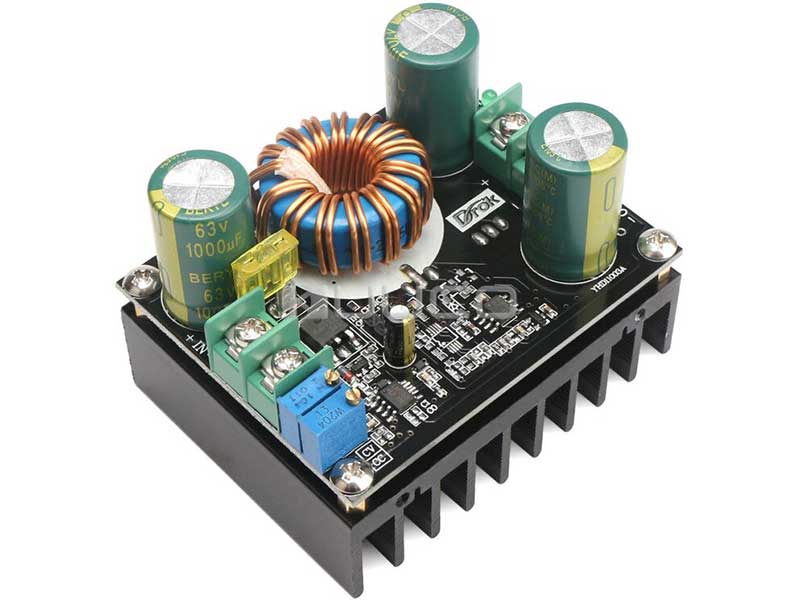

Modul step up DC-DC 600W 10A 12-60V la 12-80V

    Informatii produs

    600W Power Adapter DC12~60V to 12~80V 12A Adjustable Voltage Regulator CC-CV Laptop Charger DC12V 24V Converter/Car Power Supply





    Module Parameters:



    • Module Name: non-isolated 600W boost Constant Voltage Constant Current module, Batteries Charger.

    • Input voltage 1: 12-60VDC (default range, for wide input voltage range applications)

    • Input voltage 2:  9-16VDC (for 3 lithium battery and 12V battery) , please do not overrange

    • Input Current: 16A MAX. (over 10A,please enhance heat dissipation,such as 5cm cooling fan)

    • Quiescent Current: 15mA (when 12V step up to 20V), if the output voltage is higher, the quiescent current will increase.)

    • Output Voltage : 12-80VDC (continuously adjustable),default output: 19VDC

    • Output Current: 12A Max. (over 10A,please enhance heat dissipation.), the greater the input and output voltage difference , the smaller the output current

    • Constant current range :0.1-12A

    • Output power: = Input voltage * 10A, such as: input 60V * 10A = 600W,if need more output power,  such as need the output to 15A,two modules can be used in parallel, the current of each module can be adjusted to 8A.

    • Conversion efficiency: Up to 95%

    • Operating Frequency: 150KHz

    • Operating temperature: -40 to +85 °c (if the ambient temperature is too high, please enhance heat dissipation)

    • Overcurrent protection: Yes (if the input exceeds 17A, automatically reduces the output voltage)

    • Short-circuit protection: Yes (20A input fuse,double short-circuit protection.)

    • Output feeding back protection:Yes (for charging,the separate output diode is not required.)

    • Input Reverse Polarity Protection:None (If need please install diode at the input port )

    • Installation: two 3mm screws

    • Connection: terminals, solderless

    • Dimensions: 76mm x 60mm x 56mm

    • Module Weight: 205 g


    Application:



    • DIY a regulator power supply, input 12V, output can be 12-80V adjustable.

    • The power supply for electronic equipment.

    • Used as a car power supply, Power supply for laptop,PDA, or other digital products

    • DIY a laptop mobile power supply: 12V coupled with high-capacity lithium batteries,

    • Solar panel regulator

    • Batteries charger

    • Driving high-power LED lights.


    Note:



    • For battery charging, the need to battery is fully discharged,then connected to the output, and then adjusted to the desired current. Because the more the battery remaining, the smaller the charge current.

    • When the Input voltage rang of  9-12VDC (short circuit method), under this state, the module circuit can not be adjusted.


    Package Included:



    • 1 x DC Boost Converter (Constant Voltage Constant Current Module Charger)

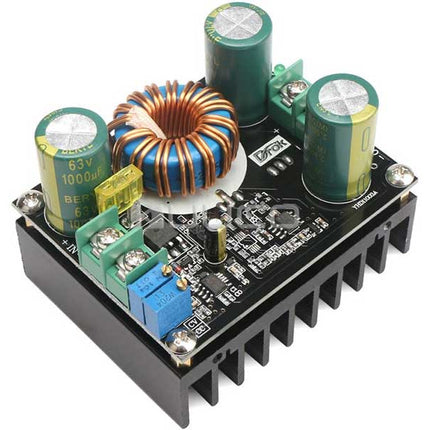

    Modul step up DC-DC 600W 10A 12-60V la 12-80V

      Product form

      Produs in stoc

      57,00 lei

        • Comanda minima recomandata 50lei
        • Livrare rapida in toata Romania
        • 14 zile drept de retur de la primirea produsului
        • Peste 80.000 clienti multumiti

        • Plati securizate. Poți plăti online, cu OP sau la livrare.

          stripe
          Informatii livrare

        Livrare în orice localitate din România prin curier Sameday sau Fan Courier (36–72 ore).

        Costul livrării este de 22 lei pentru colete cu greutatea fizică sau volumetrică de până la 8 kg. Pentru coletele care depășesc 8 kg, costul livrării se recalculează.
        Pentru comenzile ce depasesc 1.000 lei, transportul este gratuit.

        Retur 14 zile

        Beneficiezi de 14 zile drept de retur de la primirea produselor.

        Pentru orice informații, ne poți contacta telefonic la +40316302123
