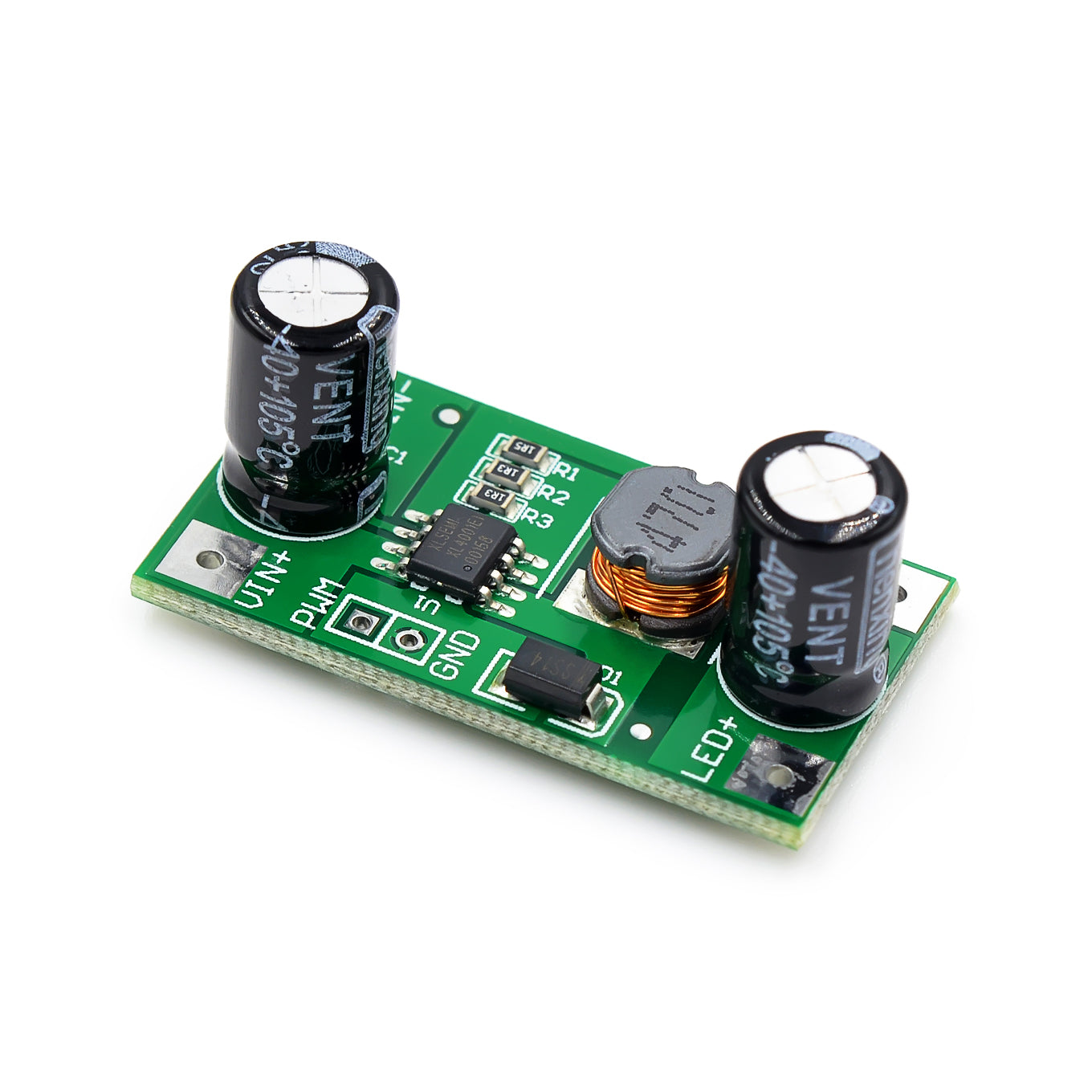

Modul led driver DC 5-35V 1W

    Informatii produs

    1. Item No.: LED-1W.


    2. Input range 5-35V camp after.


    3. Output 350mA 20mA to drive 1-10 1W LEDs. 4. Support PWM dimming, high level off output, low level on


    output.


    5. The buck I mode ensures that the total voltage difference of


    the LED is lower than the input power voltage 2-3V can work 6. Small volume design (36*20mm), low noise and safety features.


    7. Use high-efficiency, low-consumption, and stable chips to


    achieve energy saving and environmental protection.


    8. Constant output current, low ripple. Ensure the safety and


    stability of LED use Improved the light efficiency of the LED and reduce the light attenuation.


    9. Overload, short circuit and over current protection to ensure the


    safety of power supply. 10. Wide voltage input, VIN+ is the positive input VIN- is the negative power input.


    11. LED+ is connected to the anode of LED, and LED- is connected


    to the cathode of LED.

    Modul led driver DC 5-35V 1W

      Product form

      Produs in stoc

      5,70 lei

        • Comanda minima recomandata 50lei
        • Livrare rapida in toata Romania
        • 14 zile drept de retur de la primirea produsului
        • Peste 80.000 clienti multumiti

        • Plati securizate. Poți plăti online, cu OP sau la livrare.

          stripe
          Informatii livrare

        Livrare în orice localitate din România prin curier Sameday sau Fan Courier (36–72 ore).

        Costul livrării este de 22 lei pentru colete cu greutatea fizică sau volumetrică de până la 8 kg. Pentru coletele care depășesc 8 kg, costul livrării se recalculează.
        Pentru comenzile ce depasesc 1.000 lei, transportul este gratuit.

        Retur 14 zile

        Beneficiezi de 14 zile drept de retur de la primirea produselor.

        Pentru orice informații, ne poți contacta telefonic la +40316302123

        Informatii produs

        1. Item No.: LED-1W.


        2. Input range 5-35V camp after.


        3. Output 350mA 20mA to drive 1-10 1W LEDs. 4. Support PWM dimming, high level off output, low level on


        output.


        5. The buck I mode ensures that the total voltage difference of


        the LED is lower than the input power voltage 2-3V can work 6. Small volume design (36*20mm), low noise and safety features.


        7. Use high-efficiency, low-consumption, and stable chips to


        achieve energy saving and environmental protection.


        8. Constant output current, low ripple. Ensure the safety and


        stability of LED use Improved the light efficiency of the LED and reduce the light attenuation.


        9. Overload, short circuit and over current protection to ensure the


        safety of power supply. 10. Wide voltage input, VIN+ is the positive input VIN- is the negative power input.


        11. LED+ is connected to the anode of LED, and LED- is connected


        to the cathode of LED.
