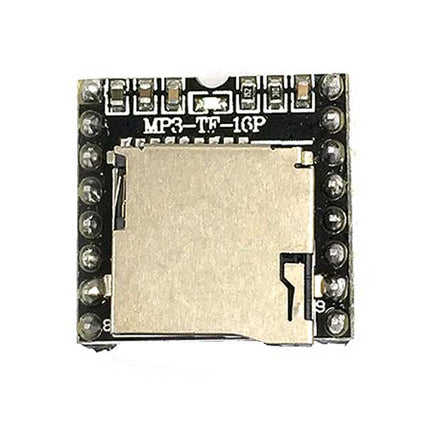

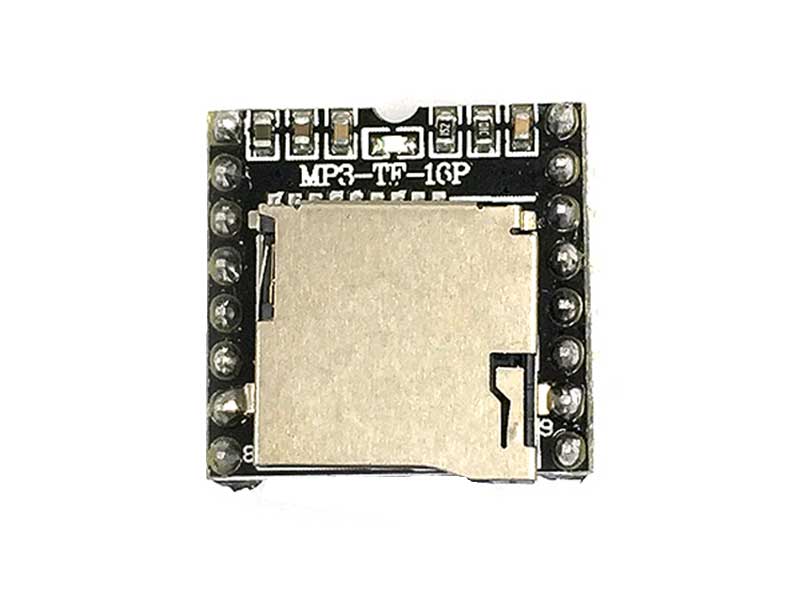

Modul decodor MP3 mini TF(microSD)

    Informatii produs






    DFPlayer Mini is a compact and inexpensive MP3 module can be connected directly to the speaker. Module with battery power supply, speaker, keypad can be used alone, or through the serial port control, as the for Arduino or any microcontroller with a serial port module. The module itself perfectly integrated hardware decode MP3, WAV, WMA's. While the software supports TF card driver to support FAT16, FAT32 file system. Can be done by simple serial command plays the specified music, as well as how to play music and other functions, without tedious low-level, easy to use, stable and reliable.





    Technical Specifications
    1, supports sampling rates (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48
    2,24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB
    3, fully supports FAT16, FAT32 file system, maximum support 32G TF card, support U disk to 32G, 64M bytes of NORFLASH
    4, a variety of control modes are available. IO control mode, serial mode, AD key control mode
    5, the broadcast language spots feature, you can pause the background music being played. Advertising finished playing back background sound to continue playing
    6, the audio data is sorted by folder, supports up to 100 folders, folders can assign every 255 Tracks
    7,30 level adjustable volume, adjustable EQ 6

    Modul decodor MP3 mini TF(microSD)

      Product form

      Produs in stoc

      9,79 lei

        • Comanda minima recomandata 50lei
        • Livrare rapida in toata Romania
        • 14 zile drept de retur de la primirea produsului
        • Peste 80.000 clienti multumiti

        • Plati securizate. Poți plăti online, cu OP sau la livrare.

          stripe
          Informatii livrare

        Livrare în orice localitate din România prin curier Sameday sau Fan Courier (36–72 ore).

        Costul livrării este de 22 lei pentru colete cu greutatea fizică sau volumetrică de până la 8 kg. Pentru coletele care depășesc 8 kg, costul livrării se recalculează.
        Pentru comenzile ce depasesc 1.000 lei, transportul este gratuit.

        Retur 14 zile

        Beneficiezi de 14 zile drept de retur de la primirea produselor.

        Pentru orice informații, ne poți contacta telefonic la +40316302123

        Informatii produs






        DFPlayer Mini is a compact and inexpensive MP3 module can be connected directly to the speaker. Module with battery power supply, speaker, keypad can be used alone, or through the serial port control, as the for Arduino or any microcontroller with a serial port module. The module itself perfectly integrated hardware decode MP3, WAV, WMA's. While the software supports TF card driver to support FAT16, FAT32 file system. Can be done by simple serial command plays the specified music, as well as how to play music and other functions, without tedious low-level, easy to use, stable and reliable.





        Technical Specifications
        1, supports sampling rates (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48
        2,24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB
        3, fully supports FAT16, FAT32 file system, maximum support 32G TF card, support U disk to 32G, 64M bytes of NORFLASH
        4, a variety of control modes are available. IO control mode, serial mode, AD key control mode
        5, the broadcast language spots feature, you can pause the background music being played. Advertising finished playing back background sound to continue playing
        6, the audio data is sorted by folder, supports up to 100 folders, folders can assign every 255 Tracks
        7,30 level adjustable volume, adjustable EQ 6
