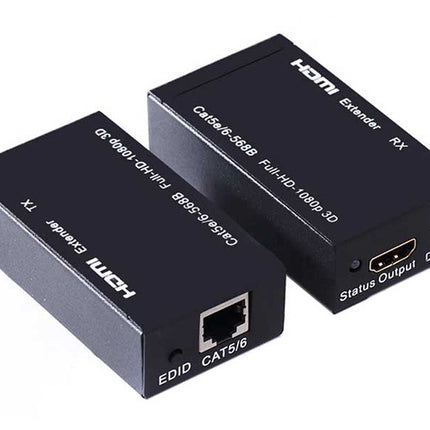

HDMI extender UTP 60m FullHD

    Informatii produs

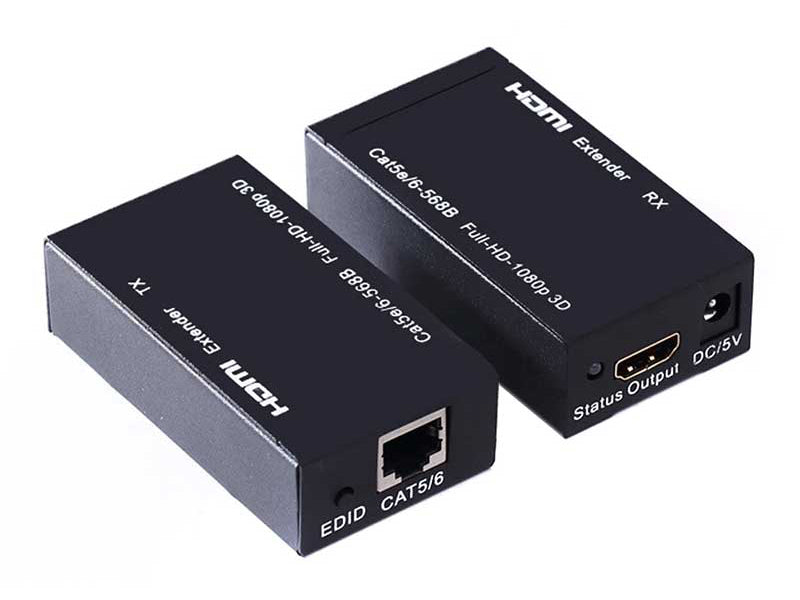

    The HDMI Extender by CAT-5e/6 uses 1 piece of CAT-5e/6 cables to extend the HDTV display up to 30 m for 1080p using a Cat6 cable the transmission distance can be up to 60 m for 480p while using CAT-5e/6 cable. It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more ? exibility and convenience in cable construction. It is equipped with HDMI connectors and is capable of supporting DVI equipment when used with a HDMI to DVI Adapter, providing greater ? exibility and options when integrating several home theater components.

    Features:

    • One pair as a full functional module, no need of setting.
    • CAT-5e/6 cable can substitute a HDMI cable to achieve long distance transmission.
    • Follow the standard of IEEE-568B.
    • Transmission distance can be up to 30 m for 1080p while using CAT-6 cable.
    • Compact size.
    • Signalling rates up to 1.65GBps in support of 1080p display.
    • HDCP compliant.

    Speci?cations:

    Signal Inputs/Output
    Input Video Signal 0.5 -1.0 V p-p
    Input DDC Signal 5 V p-p (TTL)
    Maximum Single Link Range 1920X1200, 1080p
    Output Video HDMI
    Video format supported DTV/HDTV 1080P/1080i/720P/576P/480P/576i/480i
    Transmission distance
    Using CAT6 Cable 30 m for1080p
    Using CAT5e/6 Cable 50 m for 480p
    Resolutions (HDTV)
    Interlaced(50&60Hz) 480i, 576i, 1080i
    Progressive(50&60Hz) 480p, 576p, 720p, 1080p
    Environmental
    Operating Temperature -15 to +55°C
    Operating Humidity 10% to 85 % RH (no condensation)
    Storage Temperature -10°C to +80°C
    Storage Humidity 5% to 95 % RH (no condensation)
    Power Requirement
    External Power Supply 5V DC@2A
    Regulatory Approvals
    Converter Unit FCC, CE, UL
    Power Supply UL, CE, FCC

    HDMI extender UTP 60m FullHD

      Product form

      Produs in stoc

      54,44 lei

        • Comanda minima recomandata 50lei
        • Livrare rapida in toata Romania
        • 14 zile drept de retur de la primirea produsului
        • Peste 80.000 clienti multumiti

        • Plati securizate. Poți plăti online, cu OP sau la livrare.

          stripe
          Informatii livrare

        Livrare în orice localitate din România prin curier Sameday sau Fan Courier (36–72 ore).

        Costul livrării este de 22 lei pentru colete cu greutatea fizică sau volumetrică de până la 8 kg. Pentru coletele care depășesc 8 kg, costul livrării se recalculează.
        Pentru comenzile ce depasesc 1.000 lei, transportul este gratuit.

        Retur 14 zile

        Beneficiezi de 14 zile drept de retur de la primirea produselor.

        Pentru orice informații, ne poți contacta telefonic la +40316302123
