Alimentator stabilizat 600ma Minwa

    Informatii produs

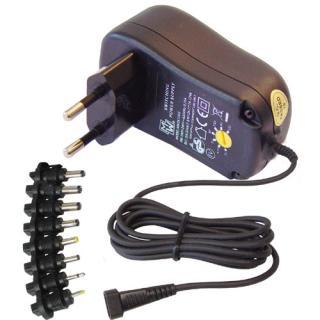

    Eco-friendly 600mA(max) Plug-In Switching Power Supply
    with USB-Outlet and 6 different output connectors, high
    energy efficiency, low stand-by loss. With rotary switch at
    the back.

    INPUT VOLTAGE 100 to 240 Vac

    INPUT FREQUENCY 50/ 60 Hz

    NO LOAD POWER CONSUMPTION <0.3 W

    INPUT FULL LOAD CURRENT(at 120 Vac) 0.16 A

    INPUT POWER 10.6 W Max


    OUTPUT


    LIGHT LOAD OUTPUT VOLTAGE 3.0/4.5/5.0/6.0/7.5/9.0/12 V dc ±10%

    FULL LOAD OUTPUT VOLTAGE 3.0/4.5/5.0/6.0/7.5/9.0/12 V dc ±10%

    MIN LOAD OUTPUT CURRENT 0 A

    MAX LOAD OUTPUT CURRENT 0.6 A

    NOISE TEST BANDWIDTH 20MHz Each output bypassed by a 10uF electrolytic capacitor parallel with a 0.1uF ceramic capacitor to GND

    LINE REGULATION 0.5 % Input 90 to 264 Vac output loaded at full load

    SETUP,RISE,HOLD UPTIME 200ms,30ms,17ms/115Vac; 200ms,20ms,80ms/230Vac


    OVERALL PERFORMANCE


    TOTAL OUTPUT POWER 7.2 W Max

    EFFICIENCY COMPLIED with CEC-400-2006-002-REV1 Efficiency level 〝Ⅳ〞Table U2 Requirement.


    PROTECTION


    ■ OVER CURRENT PROTECTION
    ■ SHORT CIRCUIT PROTECTION

    ■ OVER VOLTAGE PROTECTION
    ■ L.P.S (Limits for power source)

    ■ OVER POWER PROTECTION
    □ AUTOMATIC THERMAL PROTECTION
